Columbine
Ground-to-Ground

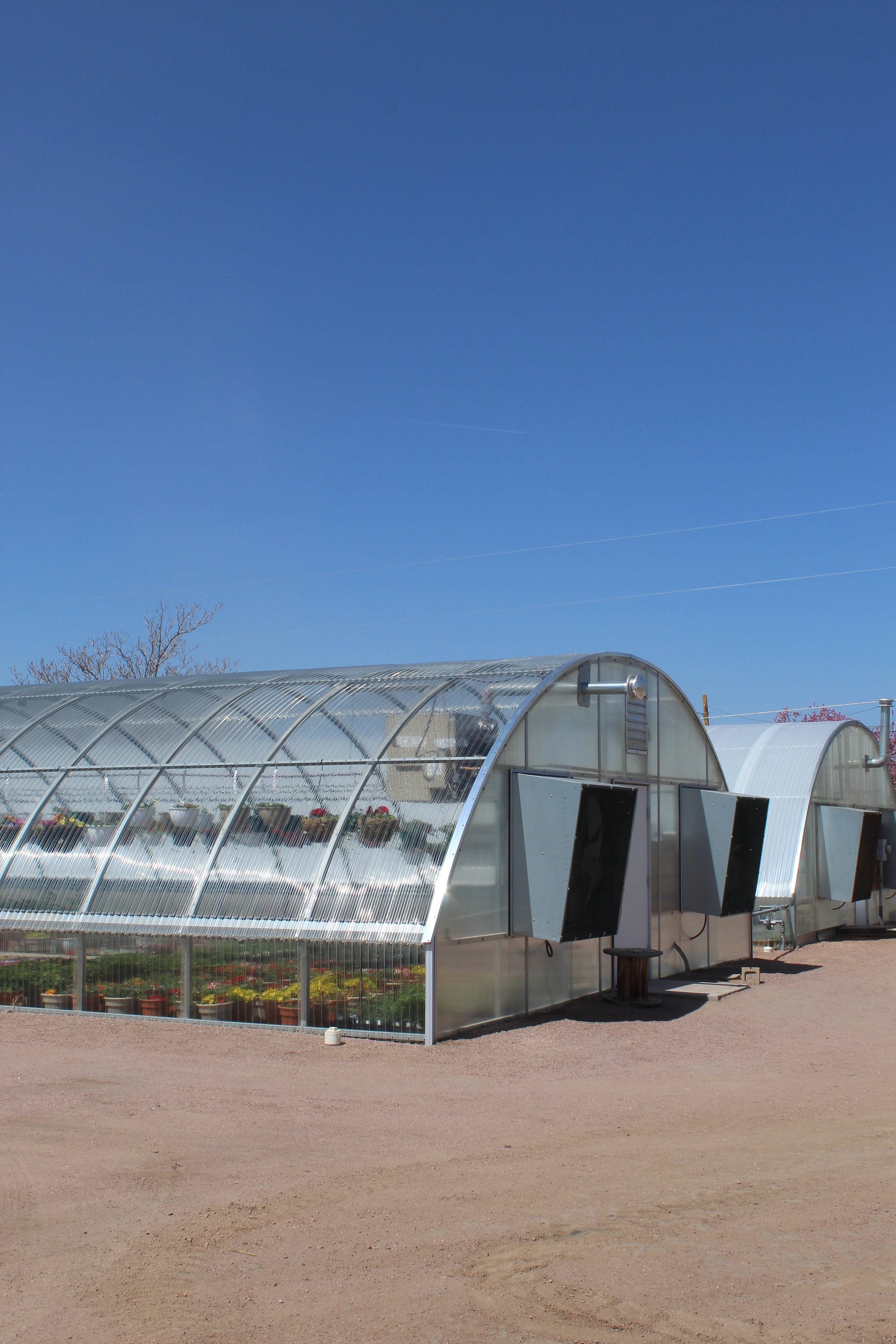

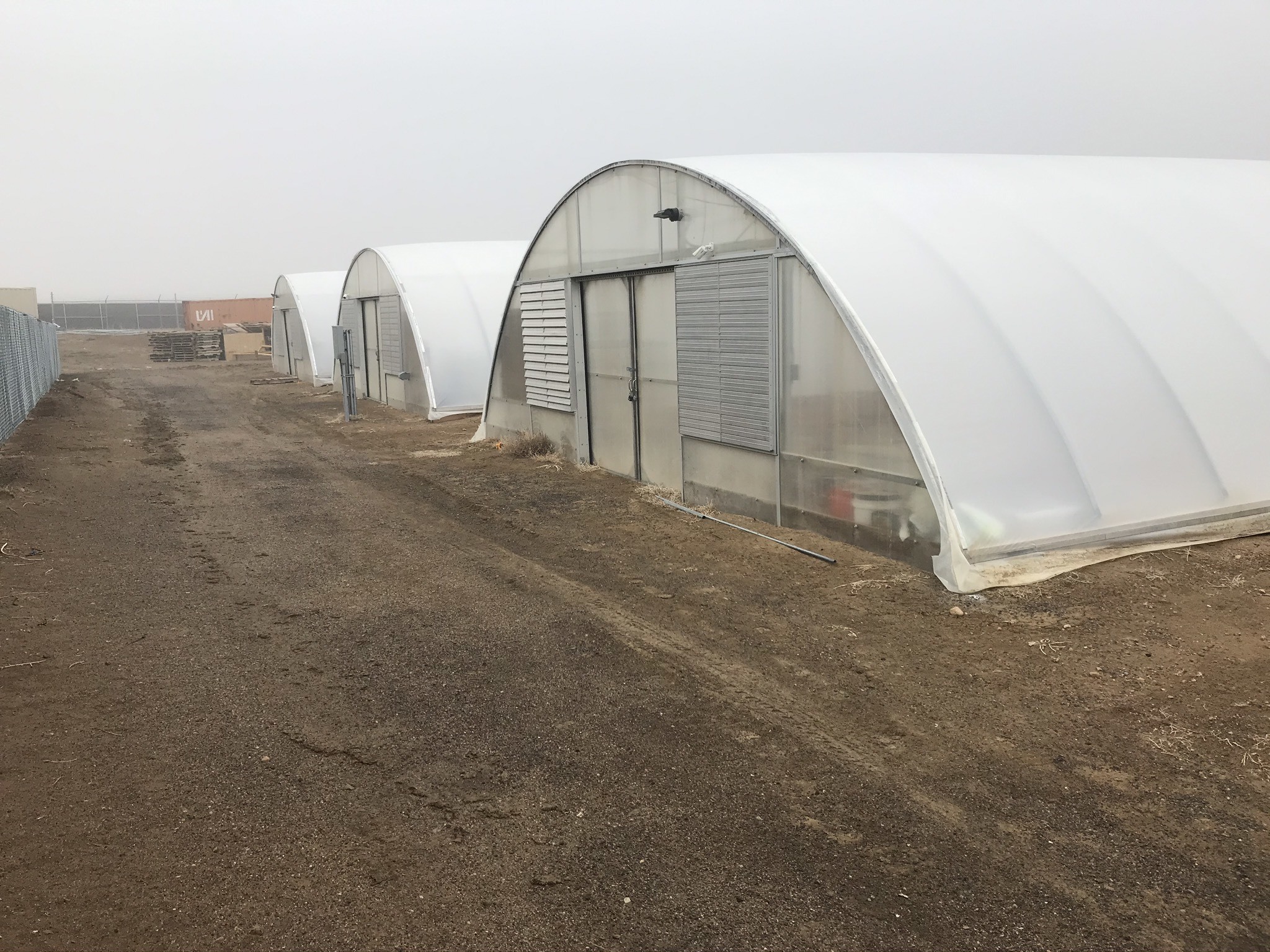

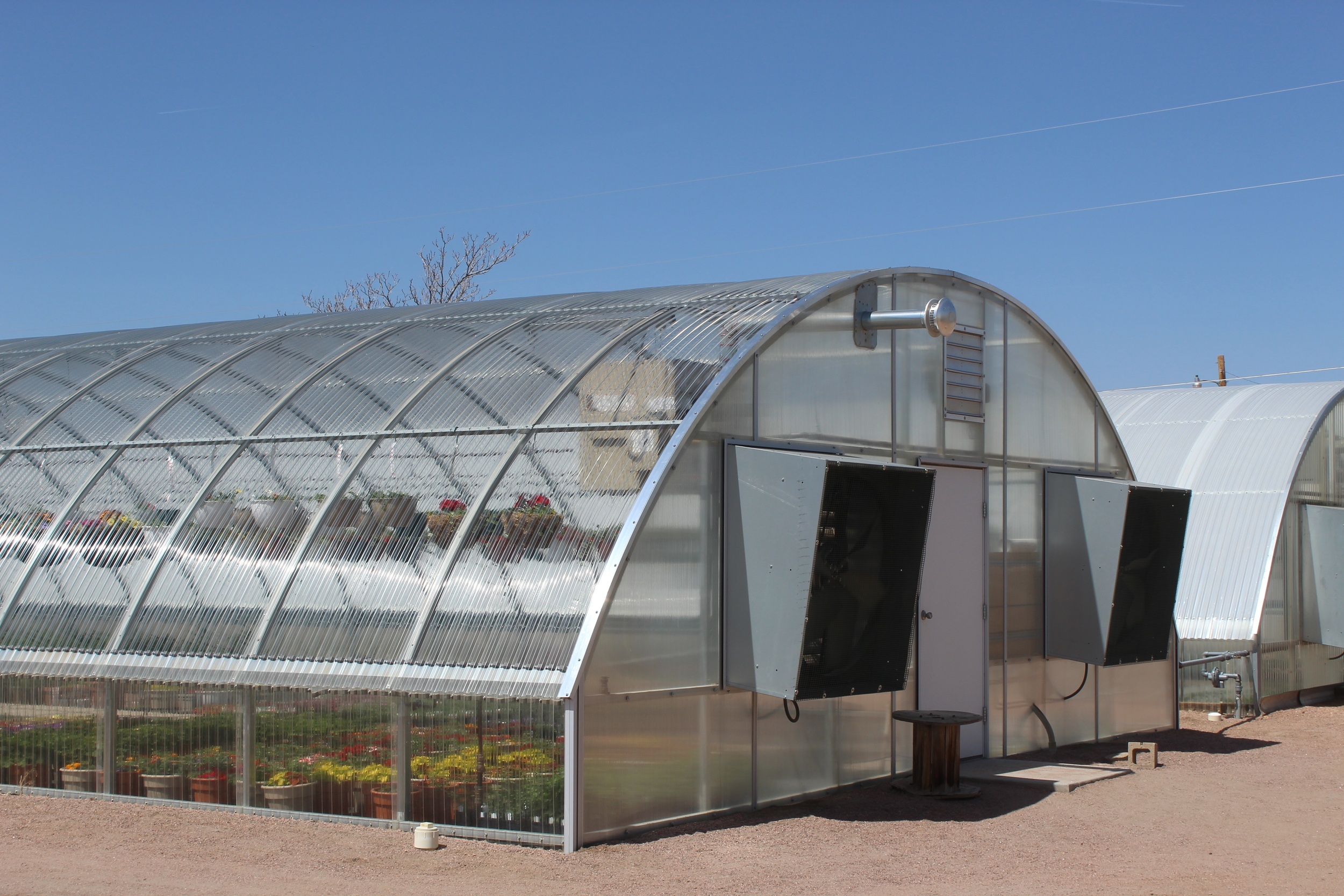

The Columbine is a durable ground-to-ground house ideal for winter greenhouse protection, early spring starts, and
inexpensive greenhouse expansions. This freestanding structure is made of high-strength, 2-inch galvanized square
bows. It is competitively priced and easy to assemble. With up to 12′ peak height, many growers use Columbines for

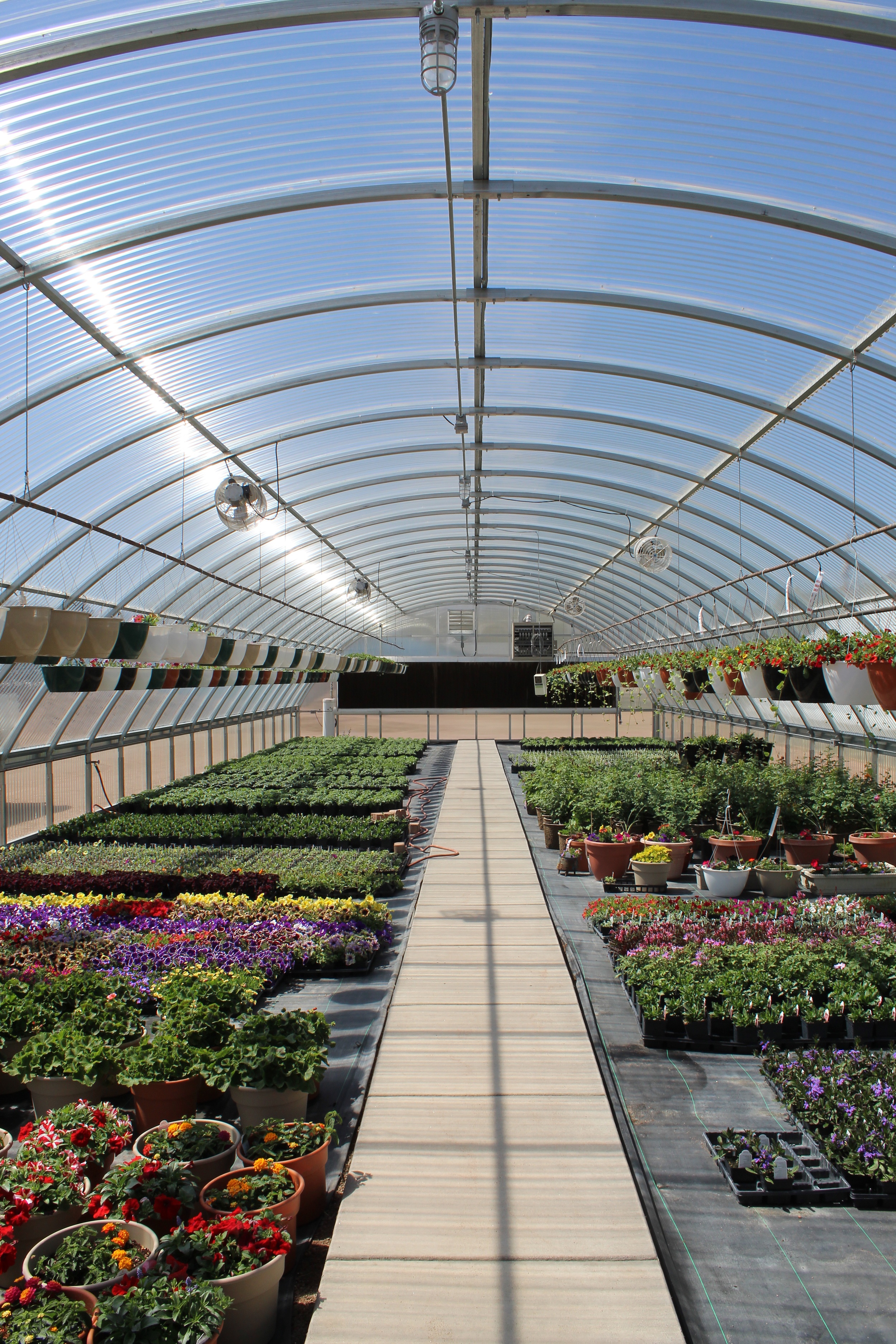

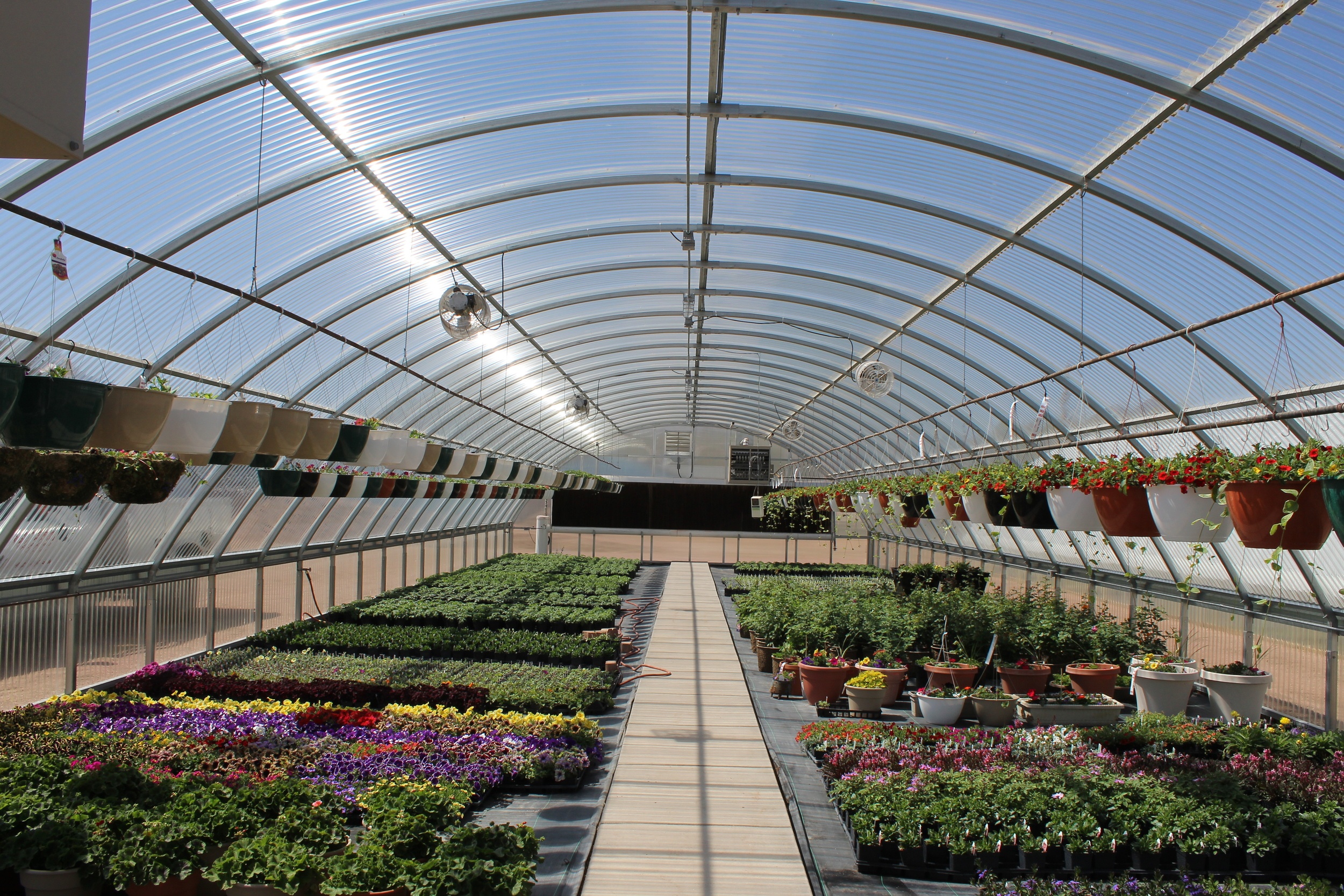

multi-tier production with hanging baskets overhead and flats or containers below and along the sidewalls. Outfit the

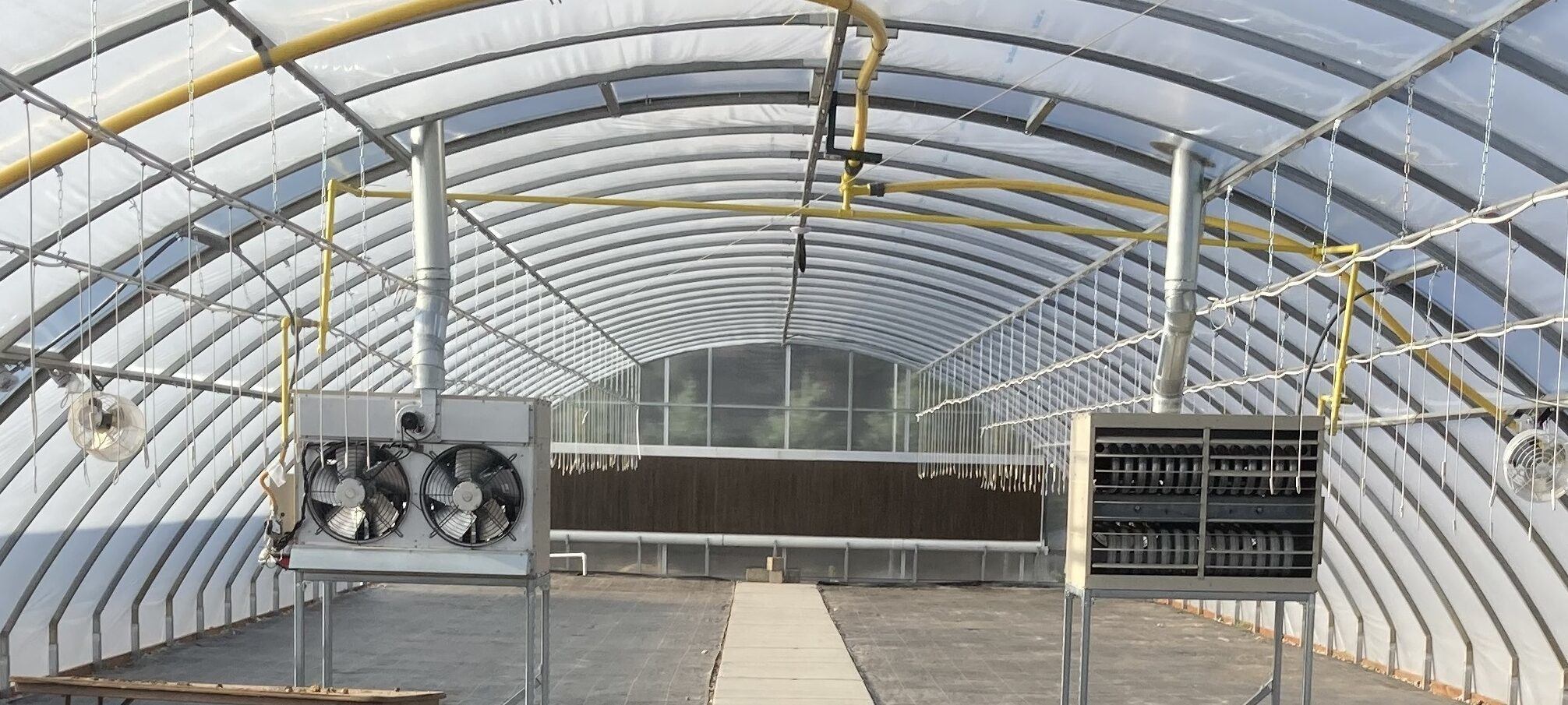

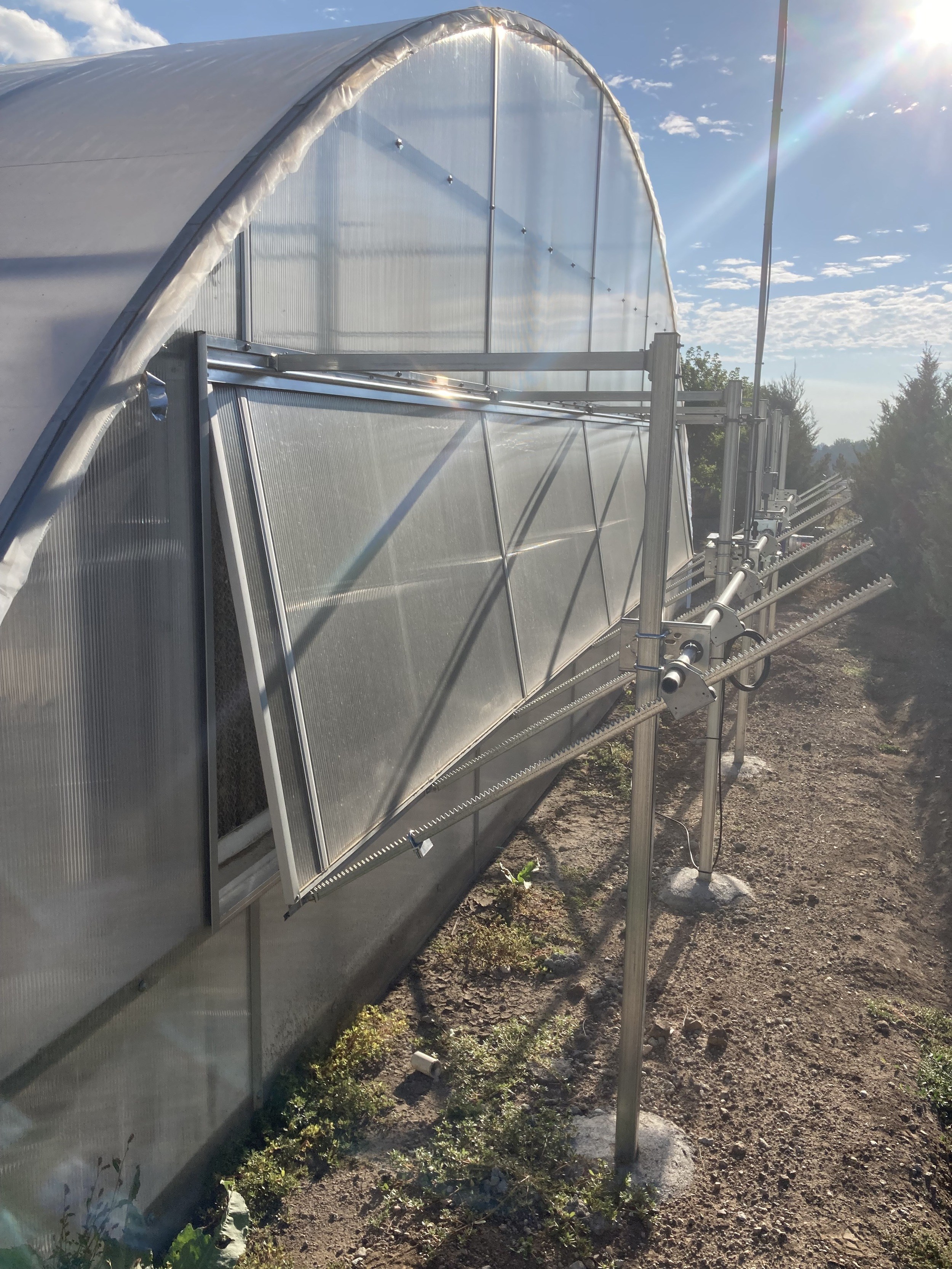

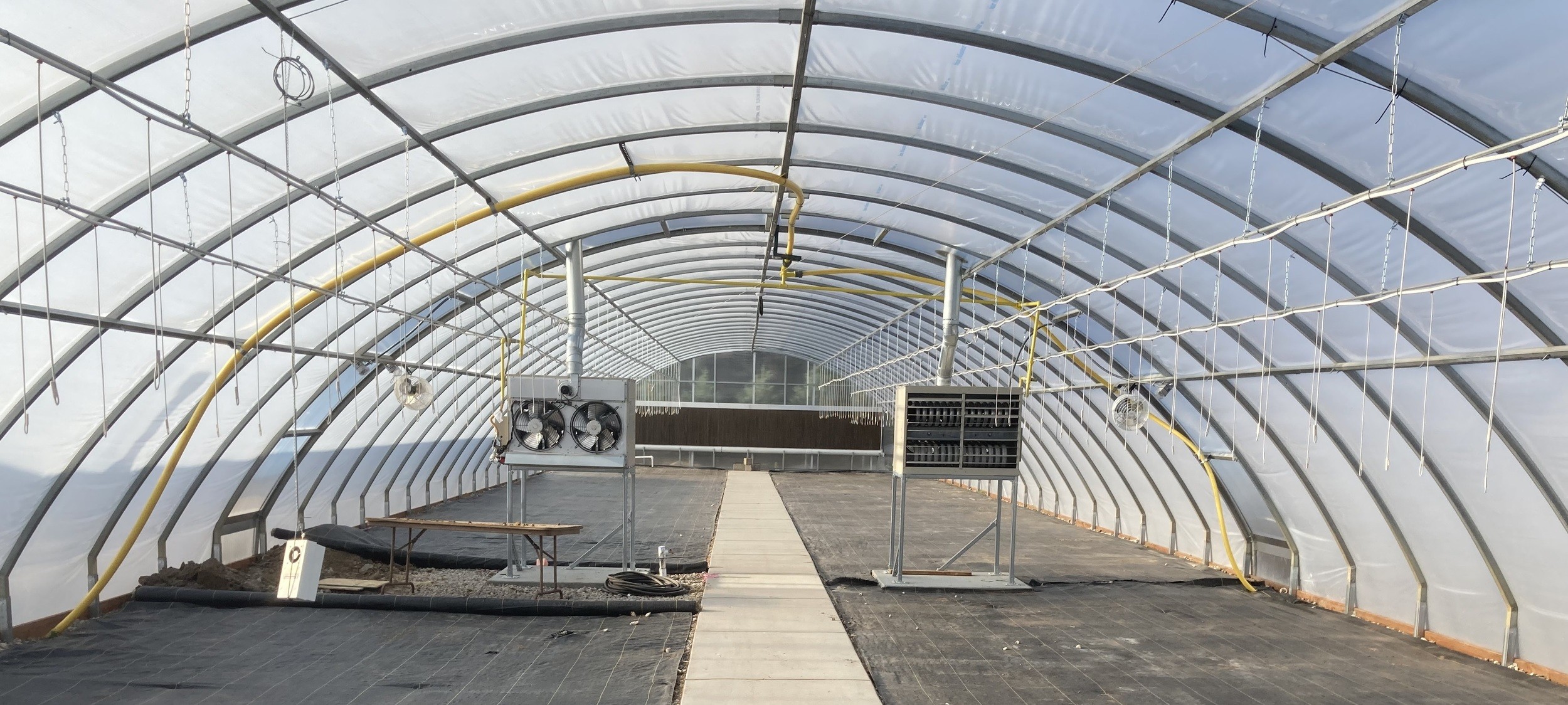

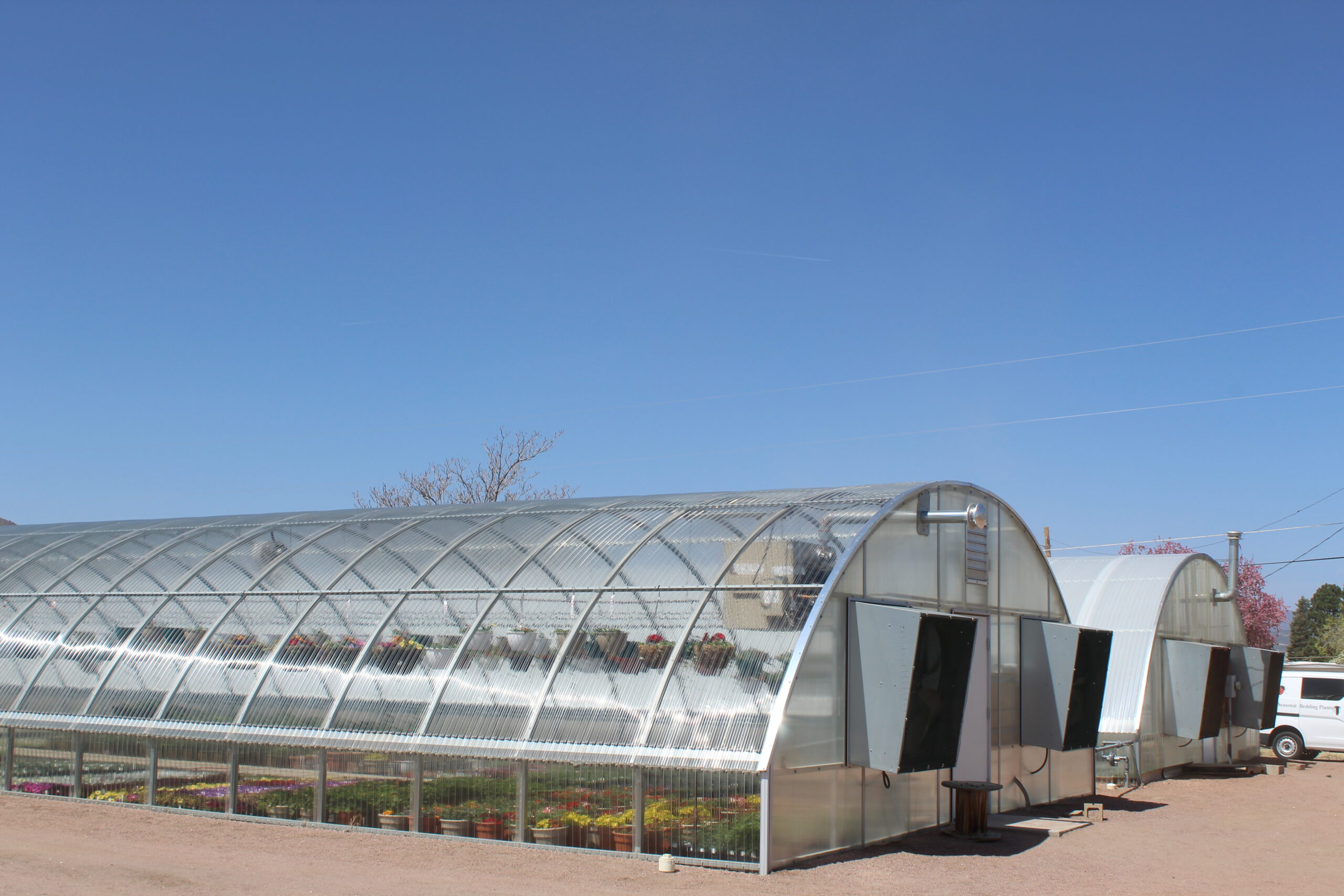

Columbine with heat and mechanical ventilation or go passive with roll-up sidewalls and large double slider doors on the end walls.
Covering Flexibility
- Adapts to double-polyethylene and polycarbonate coverings
- Can be retrofitted to accept corrugated polycarbonate
Quick Assembly
- Pre-designed for fast shipment and simple construction.
- Easy to disassemble for storage.
- The Columbine can be constructed using a welded ground frame specifically designed for seasonal pop-up locations.
Columbine Brochure
Discover the Columbine, a cost-effective, ground-to-ground greenhouse for winter protection.
Case Study: Greenhouse Research Facility – The University of Nevada
Read about our new University of Nevada, Reno, Greenhouse Research Facility.
Commercial Brochure
Overview of our greenhouses for commercial growing.
Case Study:
White Oak Garden Center
Read our case study on the White Oak Garden Center in Cincinnati, OH
Columbine Specifications
The Columbine comes as a 30′ wide span and can have a peak height of up to 12′. Roll-up sidewalls are most common, but mechanical ventilation is available.
- Standard Bow Spacing: 4′ and 6′ increments
- Standard sidewall heights: 0′, 1′, 2′, 3′
Get to Know the Columbine
- 2-inch square steel bows and 1½” square purlins
- Mounted with 2¼” square ground stakes that can be raised up to 3’ sidewall height
- 2¼” steel bow connector
- Wood or galvanized-steel baseboard
- Standard 44′ wide poly will cover the roof with standard 3′ sidewalls
- Non-load-rated house; check local codes for load requirements
- Lengths can be either 4′ or 6′ bow spacings
- Can be fitted with gable ends, flashing, and bow supports
